dis_partitions

In some cases, we need to resize partitions on a disk, such as when the same disk in our system has been expanded (usually when our system is a guest of VMWare or Hyper-V) or if another volume or partition was deleted and we want to increase the size of another one.

Get info about disk and partitions

To manage partitions, check how the disks are configured on your system. With that information, you can make a plan and make decisions.

Get Current partitions structure

To get how the partitions are structured run the next command

sudo lsblk --output NAME,FSTYPE,SIZE,MOUNTPOINT,LABEL,MODEL,PATH

example output

NAME                      FSTYPE       SIZE MOUNT LABEL MODEL                          PATH
sda                                    100G             Virtual disk                   /dev/sda
├─sda1                                   1M                                            /dev/sda1
├─sda2                    ext4           2G /boot                                      /dev/sda2
└─sda3                    LVM2_member   49G                                            /dev/sda3
  └─ubuntu--vg-ubuntu--lv ext4          49G /                                          /dev/mapper/ubuntu--vg-ubuntu--lv
sr0                                   1024M             VMware Virtual SATA CDRW Drive /dev/sr0

The first level is device, second level is Partition and the third level is Volume partition, on the example are 2 devices sda is disk and sr0 is something like a CD

Get LV Paths (lvs alternative)

The LV Path is required for the next commands for disk resize operations over Logical Volumes that already exist

sudo lvs --all --options lv_path,devices

example output

Path                     Devices
/dev/ubuntu-vg/ubuntu-lv /dev/sda3(0)

NOTE: With lsblk command we can get the LV path, but there is an alternative for command that uses LVS command

Manage partition

Resize Partition

NOTE: It is recommended to unmount (using the umount command) the partition first to prevent write operations that may generate errors. Also, disable swap. If you have the machine in VMware or Hyper-V, take a snapshot BEFORE starting this process. If possible, run a Live CD (Try Ubuntu) and perform the resize operations from there.

Parted

This process can be executed on the same disk partition where the OS is running, but risks still exist.

In some cases, there is free disk space, and we want to increase the size of one or more partitions (as in the Get Current partitions structure example). To do that, we will use parted on the sda device with the remaining free space.

Execute parted with the /dev/sda path that corresponds to the sda device.

sudo parted /dev/sda

if you do not have installed parted (minimal installation does not have this) install with this

sudo apt install parted

When this is executed, the shell will show this at the beginning.

(parted)

For this example, we will resize partition 3 to use 100% of the remaining space.

(parted) resizepart 3 100%

Then you can check with lsblk command the new disk status

cfdisk (Minimal case)

This process can be executed on the same disk partition where the OS is running, but risks still exist.

If you insist not install any additional software use cfdisk follow this

sudo cfdisk /dev/sda

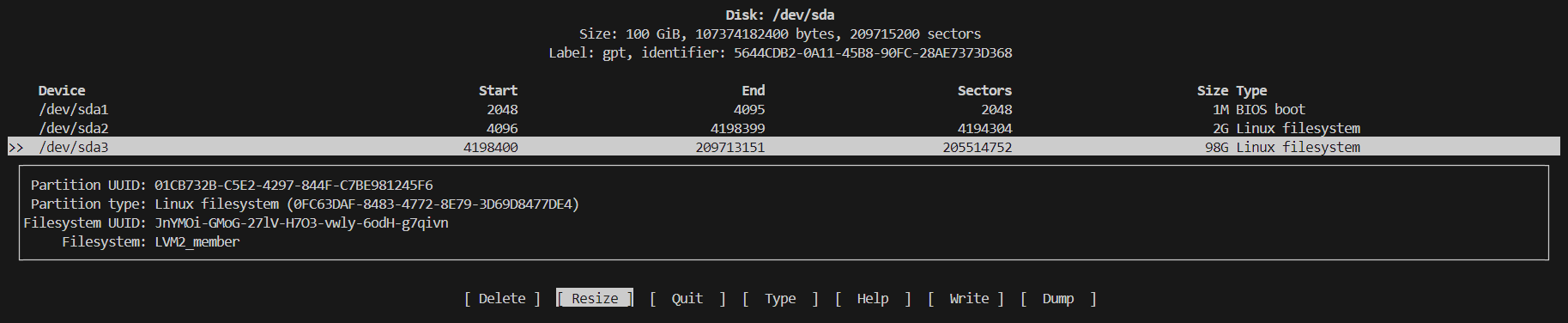

then will shouw an UI on terminal like this

Select the partition that you want to resize and select Resize option, select the desired quantity and press enter.

Manage Volume

Resize Volume

If the partition has available storage, you can resize the volumes that are already there. For this example, we will resize sda3 with all the remaining partition space (example case after the Resize Partition is done).

sudo pvresize /sda/sda3

for specific resize run

sudo pvresize --setphysicalvolumesize 10G /dev/sda3

Extend logical Volume

Now, if the volume where the Logical Volume is located has free space, we can extend the volume with the remaining space using the following command. (example case after the Resize Partition is done).

sudo lvextend -l +100%FREE /dev/ubuntu-vg/ubuntu-lv

Resize file system of new space from LV

Once volume is extended their space can not be used for file system, for that requires do execute for example case resize2fs

sudo resize2fs /dev/ubuntu-vg/ubuntu-lv

For other file systems have specific command and parameters
